Processed Glass
Curved / Bent Glass

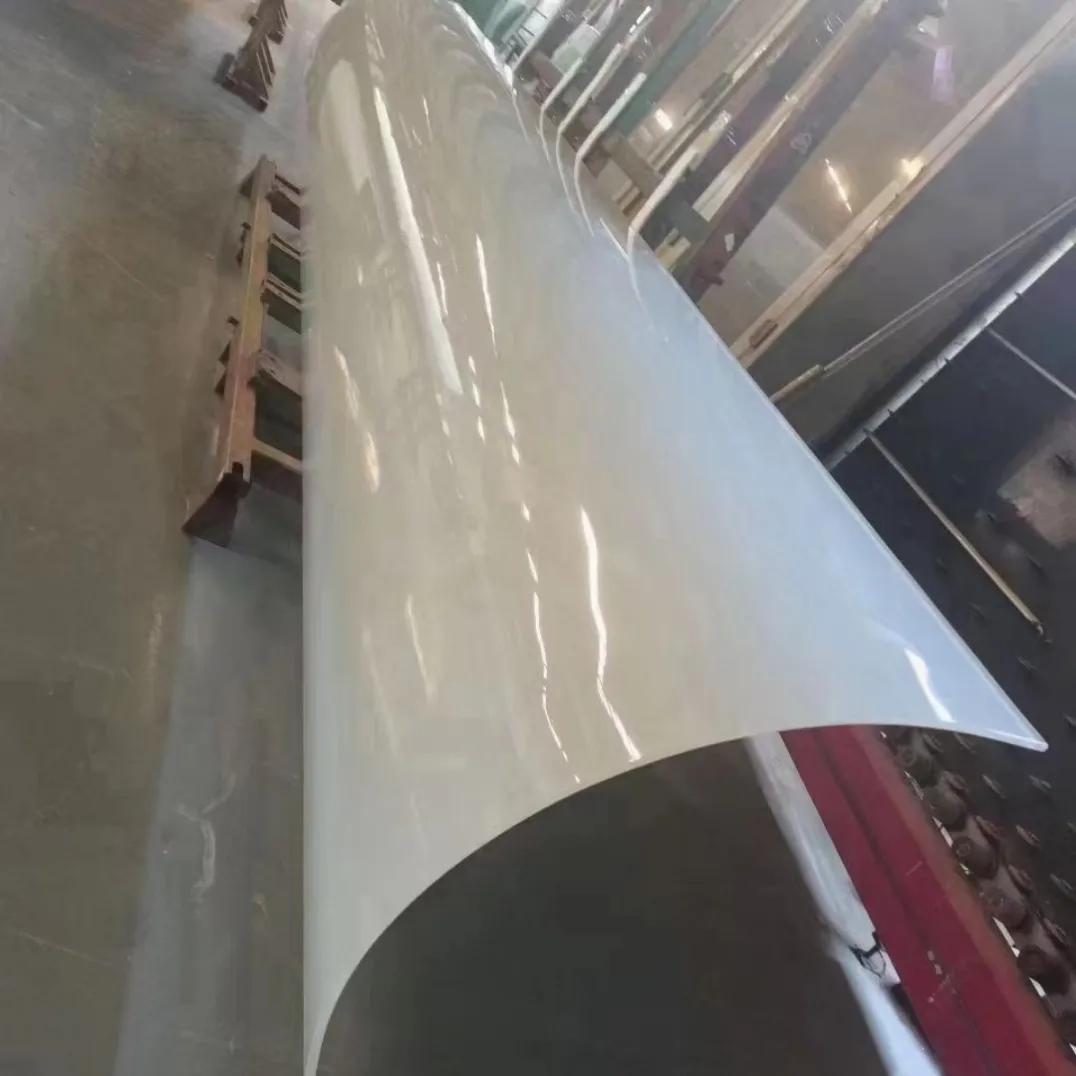

Curved (bent) glass is float glass heated until pliable and formed over a mold to a specified radius, then annealed, heat-strengthened, or tempered depending on the performance requirement. Used wherever flat glass can't achieve the design geometry.
Specifications
- Standard Thickness
- 5mm – 19mm
- Free Sample(12'')
- 7days
Key Features
Custom radius and curvature fabricated to match architectural drawings, available in tempered, heat-strengthened, or laminated configurations, and compatible with Low-E and solar control coatings.
Where This Glass Is Used
Curved curtain walls, atriums, feature facades, hospitality interiors, and display cases requiring non-flat geometry.
Manufacturing Process
- Mold forming — Flat glass is heated in a furnace until pliable, then gravity- or press-formed over a custom mold to the specified radius.
- Controlled annealing/tempering — Formed glass is annealed, heat-strengthened, or tempered depending on the strength requirement, following the curve profile.
- Radius & tolerance control — Radius, chord height, and dimensional tolerances are verified against the mold and project drawings before shipment.
- Coating compatibility — Curved glass can be produced from coated (Low-E) stock where coating durability supports the forming process.
Applications & Use Cases
- Curved Curtain Walls & Atriums — Iconic facade geometries requiring continuous, non-faceted glass curvature.
- Hospitality & Retail Interiors — Feature walls, display counters, and architectural focal points.
- Structural Glazing — Curved structural elements such as glass canopies and stair enclosures.
- Museum & Retail Display — Curved display cases requiring smooth, distortion-minimized viewing surfaces.
Standard Sizes & Specifications
Thickness | Min Radius (typ.) | Max Panel Size | Tempering |
|---|---|---|---|
5–8mm | ~500mm | Project-specific | Tempered or annealed |
10–12mm | ~1000mm | Project-specific | Heat-strengthened or tempered |
15–19mm | ~1500mm+ | Project-specific | Heat-strengthened or tempered |
Technical Service
We support your project from drawing review to delivery, not just order fulfillment.
- Drawing & Spec Review — Shop drawings and project specs are reviewed before production to confirm sizes, tolerances, and edge/hole details match your requirements.
- Testing & Documentation — Mill test certificates, thickness/strength test reports, and compliance documentation provided for project submittals.
- Technical Consultation — Our team advises on coating, thickness, and configuration selection to meet your project's structural and energy code requirements.
Customization
- Custom Cut Sizes & Shapes — Curved, notched, cut-corner, and irregular shapes fabricated to your CAD drawings, not limited to standard rectangles.
- Edgework & Drilling — Polished, beveled, or seamed edges, plus precision hole drilling and cutouts for hardware and fittings.
- Coating & Printing Options — Combine with Low-E coating, tinting, or ceramic silkscreen/digital printing on the same order.
Packaging & Shipping
- Export-Grade Crating — Reinforced wooden A-frame or flat crates with edge protection, built for ocean freight handling.
- Container Loading — Load plans optimize container utilization while maintaining safe glass spacing to prevent transit damage.
- Shipping Documentation — Packing lists, certificates of origin, and mill certificates prepared in advance for smooth customs clearance.
- Lead Time — 7days in 12'' sample; 15days in mock up sample; 35days in project order.
