Decorative Glass
Reeded / Fluted Glass

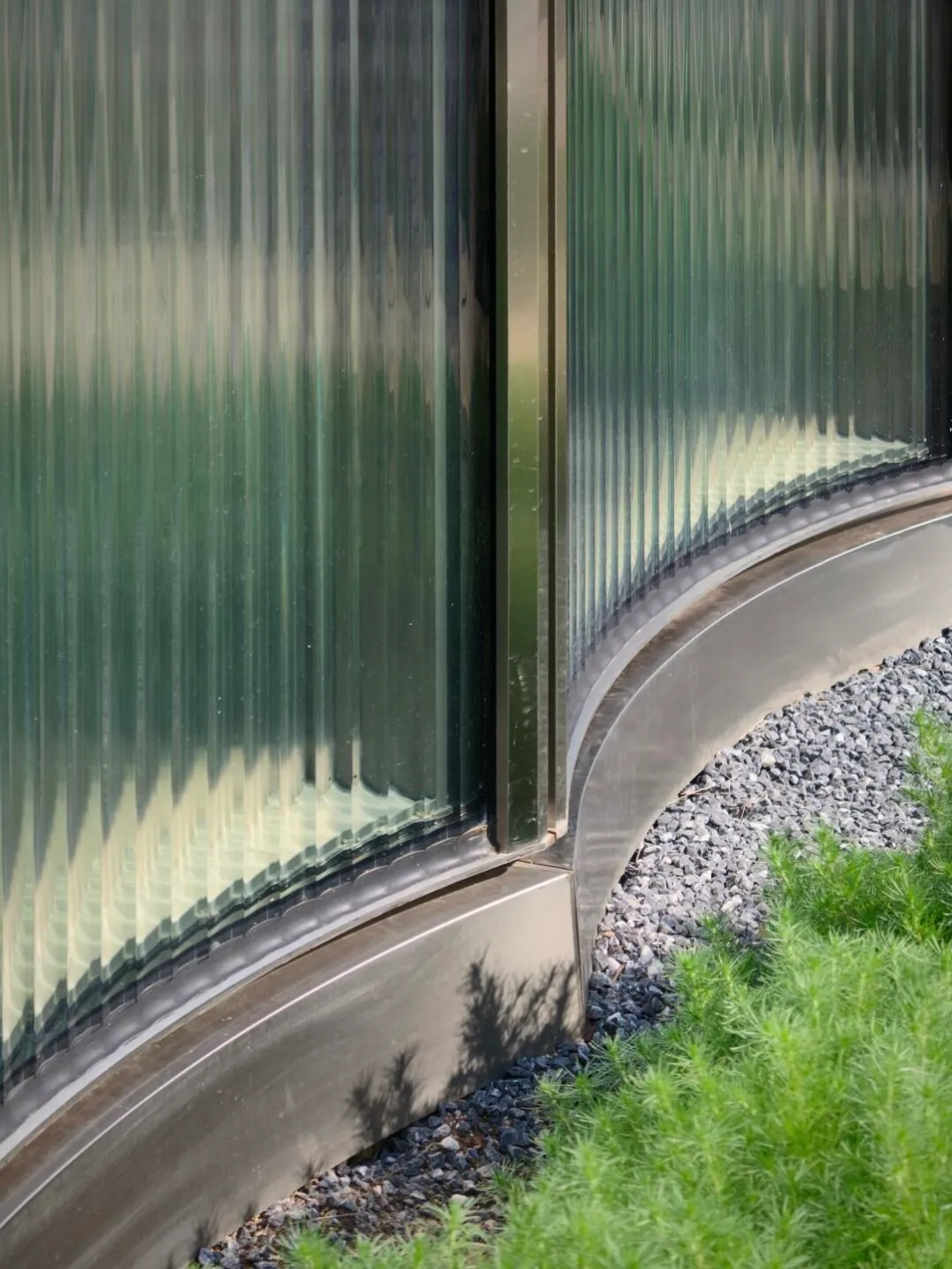

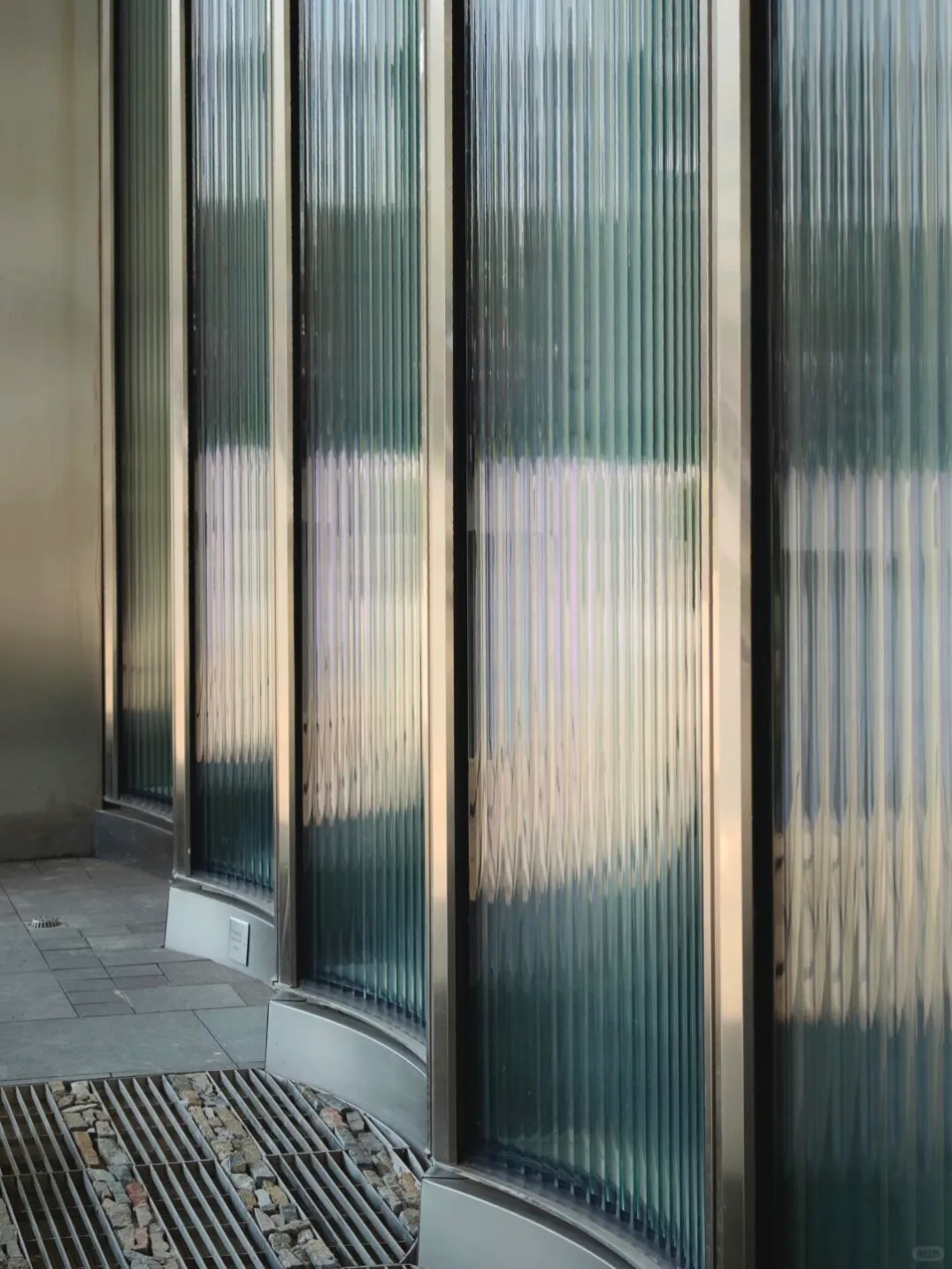

Reeded (fluted) glass features a series of parallel ribbed or grooved lines pressed into the glass surface during manufacturing, creating a directional textured pattern that diffuses light and view while adding architectural texture.
Specifications
- Standard Thickness
- 5mm – 10mm
- Max Size
- 2440 × 3660mm
- Free Sample(12'')
- 7days
Key Features
Distinctive linear ribbed texture, diffuses view while allowing substantial light transmission, adds tactile and visual texture to interiors and facades, and is available in varying rib widths and depths.
Where This Glass Is Used
Interior partitions, feature walls, cabinetry, and hospitality/retail interior design applications.
Manufacturing Process
- Roller-pattern forming — Molten glass passes between textured rollers during the rolled glass process, pressing the ribbed pattern into the surface.
- Pattern & rib control — Rib width, depth, and spacing are controlled by the roller pattern used during forming.
- Post-processing — Fluted glass can be tempered, laminated, or cut to size after the initial patterning process.
- Directional installation — Rib orientation (vertical/horizontal) is specified during ordering to match the design intent.
Applications & Use Cases
- Interior Feature Walls — Textured design element for lobbies, retail interiors, and hospitality spaces.
- Cabinetry & Furniture — Decorative panel glazing for high-end cabinetry and furniture design.
- Interior Partitions — Privacy with texture and light diffusion for office and residential partitions.
- Retail & Hospitality Interiors — Distinctive surface texture used as a design signature element.
Standard Sizes & Specifications
Configuration | Thickness Range | Max Size |
|---|---|---|
Standard rib pattern | 5–10mm | 2440 × 3660mm |
Technical Service
We support your project from drawing review to delivery, not just order fulfillment.
- Drawing & Spec Review — Shop drawings and project specs are reviewed before production to confirm sizes, tolerances, and edge/hole details match your requirements.
- Testing & Documentation — Mill test certificates, thickness/strength test reports, and compliance documentation provided for project submittals.
- Technical Consultation — Our team advises on coating, thickness, and configuration selection to meet your project's structural and energy code requirements.
Customization
- Custom Cut Sizes & Shapes — Curved, notched, cut-corner, and irregular shapes fabricated to your CAD drawings, not limited to standard rectangles.
- Edgework & Drilling — Polished, beveled, or seamed edges, plus precision hole drilling and cutouts for hardware and fittings.
- Coating & Printing Options — Combine with Low-E coating, tinting, or ceramic silkscreen/digital printing on the same order.
Packaging & Shipping
- Export-Grade Crating — Reinforced wooden A-frame or flat crates with edge protection, built for ocean freight handling.
- Container Loading — Load plans optimize container utilization while maintaining safe glass spacing to prevent transit damage.
- Shipping Documentation — Packing lists, certificates of origin, and mill certificates prepared in advance for smooth customs clearance.
- Lead Time — 7days in 12'' sample; 15days in mock up sample; 35days in project order.
