Tempered Glass
High‑strength safety glass, heat‑treated for durability, impact resistance, and thermal stability, ideal for modern architectural and interior applications.
Specifications
- Service Duration
- 4-8 months
- Service Content
- Current state analysis, solution design, implementation guidance
- Deliverables
- Optimization plan, process documentation, system configuration
Tempered Glass — High-Strength Safety Glass for Modern Architecture
Material Introduction
Tempered glass, also known as toughened glass, is a type of safety glass processed through controlled thermal treatment to significantly increase its strength and durability. The process involves heating annealed glass to approximately 620–680°C and then rapidly cooling it using high-pressure air jets. This creates a surface compression layer and internal tension, enhancing mechanical strength and impact resistance.
Compared to standard float glass, tempered glass is approximately four to five times stronger. When broken, it shatters into small, blunt fragments rather than sharp shards, reducing the risk of serious injury. Because of its strength and safety performance, tempered glass is widely used in architectural, commercial, and residential applications.
Key Features & Performance Benefits
1. High Mechanical Strength
Tempered glass offers significantly higher bending and impact resistance than ordinary annealed glass. The surface compression layer improves load-bearing capacity and allows for larger panel sizes in structural glazing systems.
2. Safety Break Pattern
In the event of breakage, tempered glass fragments into small, relatively harmless granules. This safety feature makes it suitable for areas where human impact or accidental collision may occur.
3. Thermal Resistance
Tempered glass withstands temperature differences up to approximately 250°C, making it suitable for environments exposed to direct sunlight, heat sources, or temperature fluctuations.
4. Enhanced Load Resistance
Because of its improved strength, tempered glass performs well in wind-load conditions, making it suitable for façades, curtain walls, and exterior glazing systems.
5. Surface Durability
The tempering process increases surface hardness and resistance to mechanical stress, improving durability during installation and daily use.
Applications
Tempered glass is widely used across multiple architectural and interior applications, including:
- Curtain wall façades
- Windows and doors
- Glass railings and balustrades
- Shower enclosures
- Glass partitions
- Storefront systems
- Table tops and furniture
- Skylights and canopies
- Glass floors (when laminated)
Due to building code requirements, tempered glass is commonly specified in safety glazing zones such as doors, side-lites, low-level glazing, and bathrooms.
Technical Specifications
Tempered glass can be produced in various thicknesses and finishes depending on project requirements.
Glass Types Available:
- Clear float glass
- Low iron glass
- Tinted glass
- Reflective glass
- Patterned glass
Thickness Range:
Typically 3 mm – 25 mm (custom thickness available)
Maximum Size:
Up to approximately 3660 mm × 1800 mm (depending on thickness and equipment capability)
Custom fabrication including edge polishing, drilling, notching, cut-outs, and CNC processing must be completed prior to tempering, as tempered glass cannot be cut or reprocessed afterward.

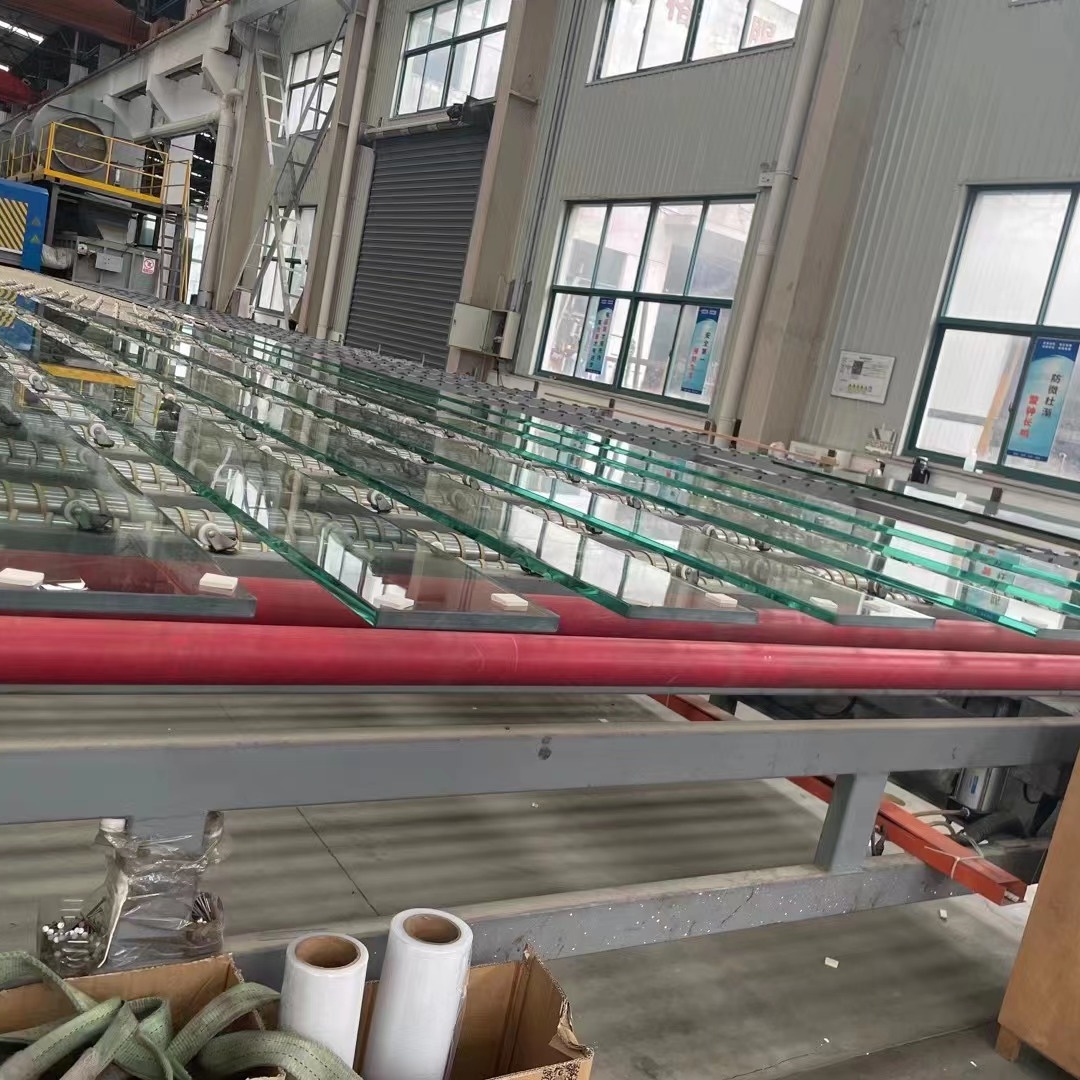

Manufacturing Process Overview
- Precision cutting and edge processing
- Drilling and notching (if required)
- Thorough cleaning
- Heating in a tempering furnace
- Rapid air quenching
- Quality inspection
Strict quality control ensures flatness, surface compression uniformity, dimensional accuracy, and optical clarity.
Tempered Glass Series & Derivative Products
To meet diverse architectural requirements, tempered glass can be further processed into a variety of advanced product systems:
• Heat Strengthened Glass
A semi-tempered option offering higher strength than annealed glass with lower surface stress than fully tempered glass.
• Heat Soaked Tempered Glass
Tempered glass subjected to heat soak testing to reduce the risk of spontaneous breakage caused by nickel sulfide inclusions.

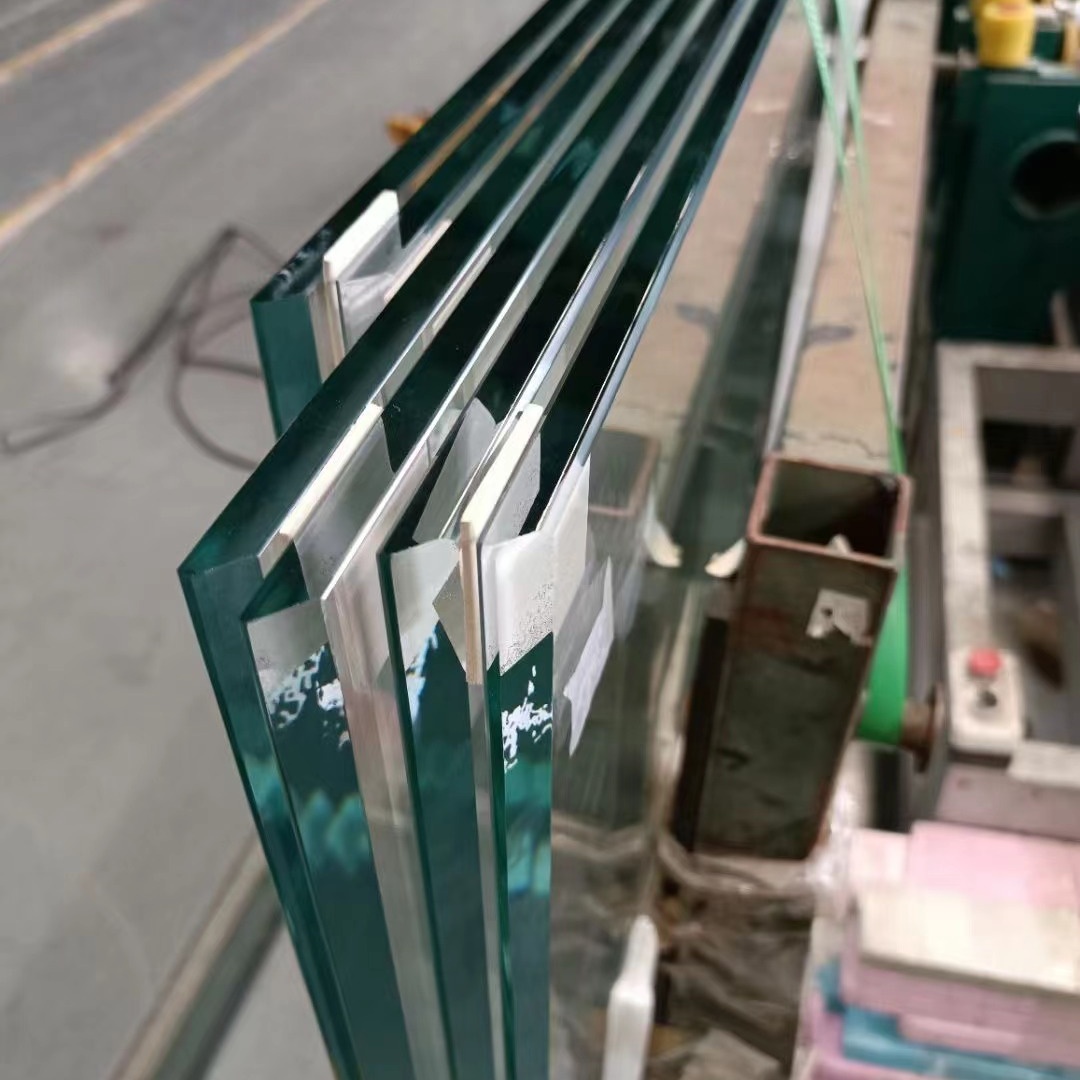

• Laminated Tempered Glass
Combines the strength of tempered glass with laminated interlayers for enhanced safety and structural performance.
• Insulated Tempered Glass (IGU)
Tempered glass integrated into double or triple glazing units for improved thermal insulation and energy efficiency.

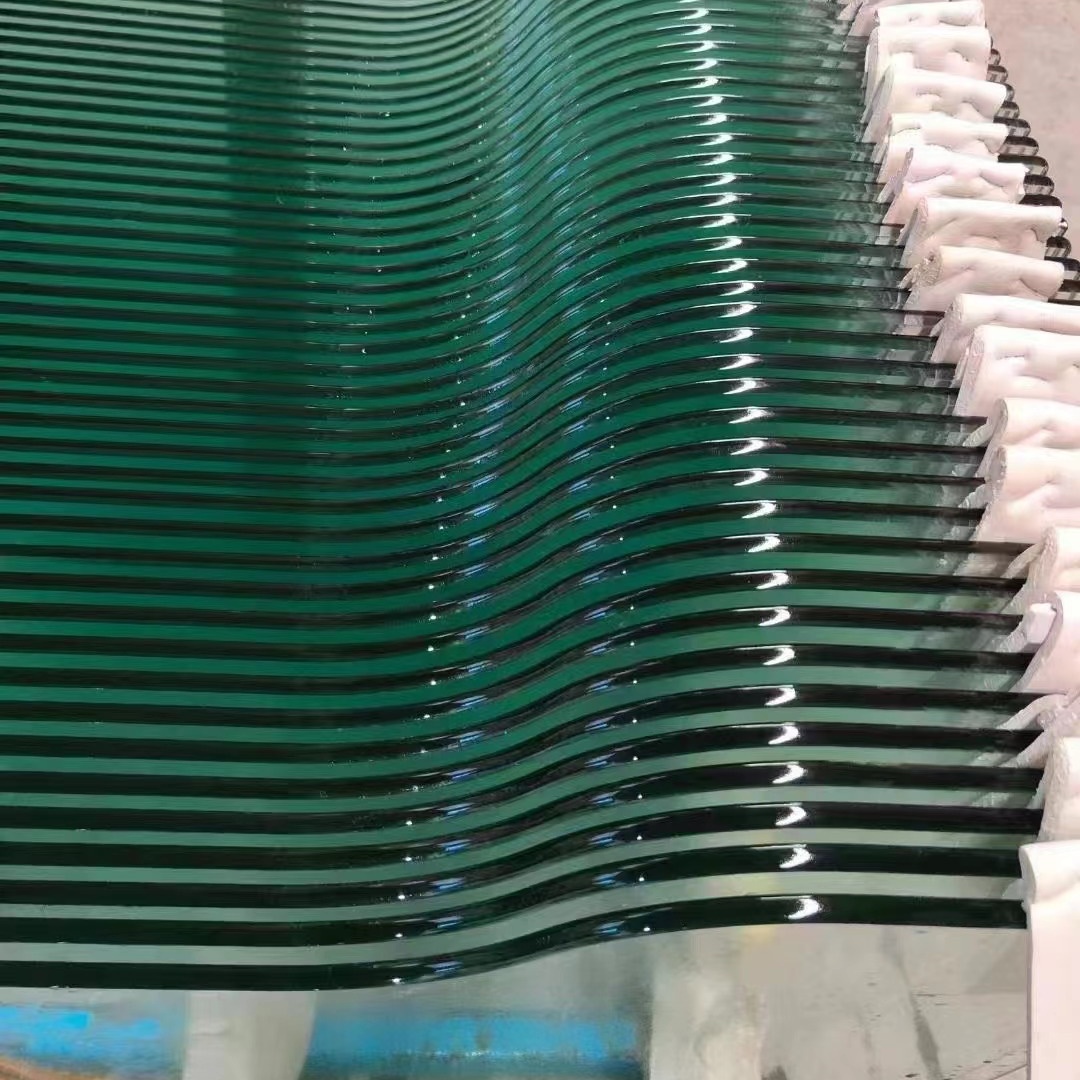

• Curved Tempered Glass
Bent and tempered panels used for architectural façades, revolving doors, and custom interior designs.
• Low Iron Tempered Glass
Ultra-clear tempered glass with reduced iron content for high transparency and premium aesthetic applications.
• Colored or Coated Tempered Glass
Tinted or reflective tempered glass for solar control and façade performance.
Why Choose Tempered Glass?
Tempered glass provides a balance of strength, safety, and versatility, making it one of the most widely used glazing materials in modern construction. Whether applied in exterior façades or interior features, it delivers reliable structural performance, improved safety, and long-term durability.
